web!SIGN101 · Web Monitor 10.1"
Display HTML content with ease

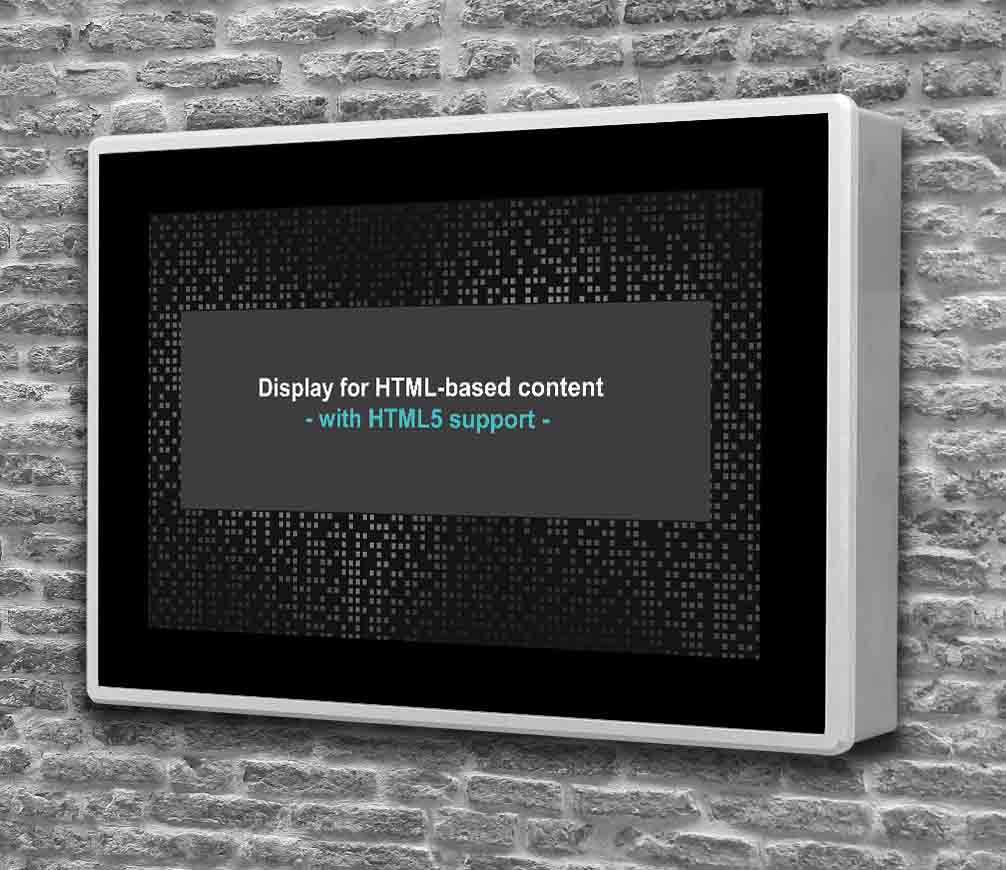

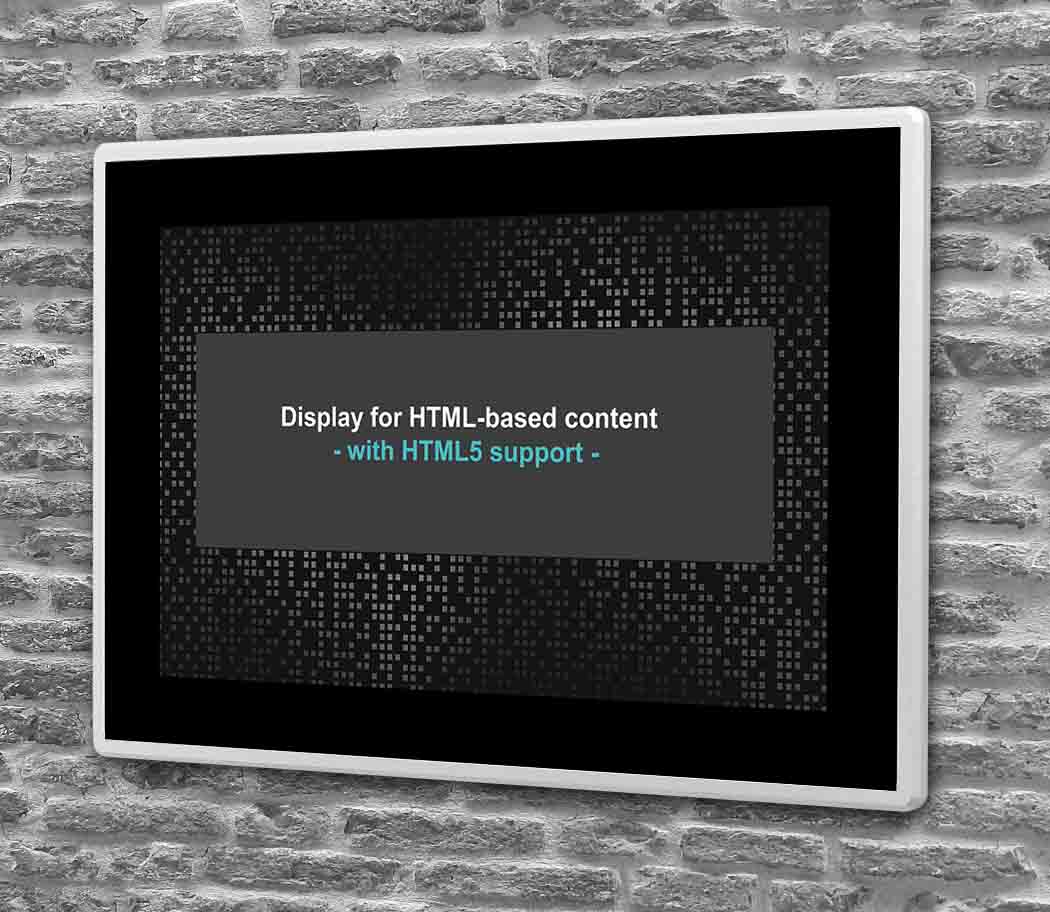

After startup, the web!SIGN101 automatically opens a configured web page and displays its content in full-screen mode – without user interaction, maintenance-free and reliably in continuous operation. The slim aluminium frame with ESG safety glass and IP65 front protection is suitable both for flush wall installation and for surface mounting with an optional housing. Power is supplied conveniently via the LAN cable (PoE).
10.1"Diagonal
1280×800Resolution
IP65Front Protection
PoEPower Supply
Technical Data
Full Specification
| Parameter | Unit | Value |
|---|---|---|
| Display | ||
| Diagonal | inch | 10.1" |
| Technology | – | MVA TFT |
| Resolution | px | 1280 × 800 |
| Viewing Angle | – | Wide (MVA) |
| Touch (option) | – | Capacitive (PCAP) |
| Housing & Protection | ||
| Bezel Frame | – | Solid aluminium |
| Protective Glass | – | ESG with black-printed frame (colour changeable) |
| Protection Class (front) | – | IP 65 |
| Mounting | – | Flush wall installation (8 mm depth) or surface mounting with housing (50 mm) |
| Dimensions (W×H) | mm | 270 × 189 |
| Connectivity & Power | ||
| Network | – | RJ45, 100 MBit Ethernet |
| Power Supply | – | PoE according to IEEE 802.3af (via LAN cable) |
| Software & Features | ||
| Controller | – | ARM-based, Linux (read-only filesystem) |
| Browser | – | Chromium or Midori, kiosk mode (full-screen) |
| Content | – | HTML, web pages from internet / intranet / CMS |

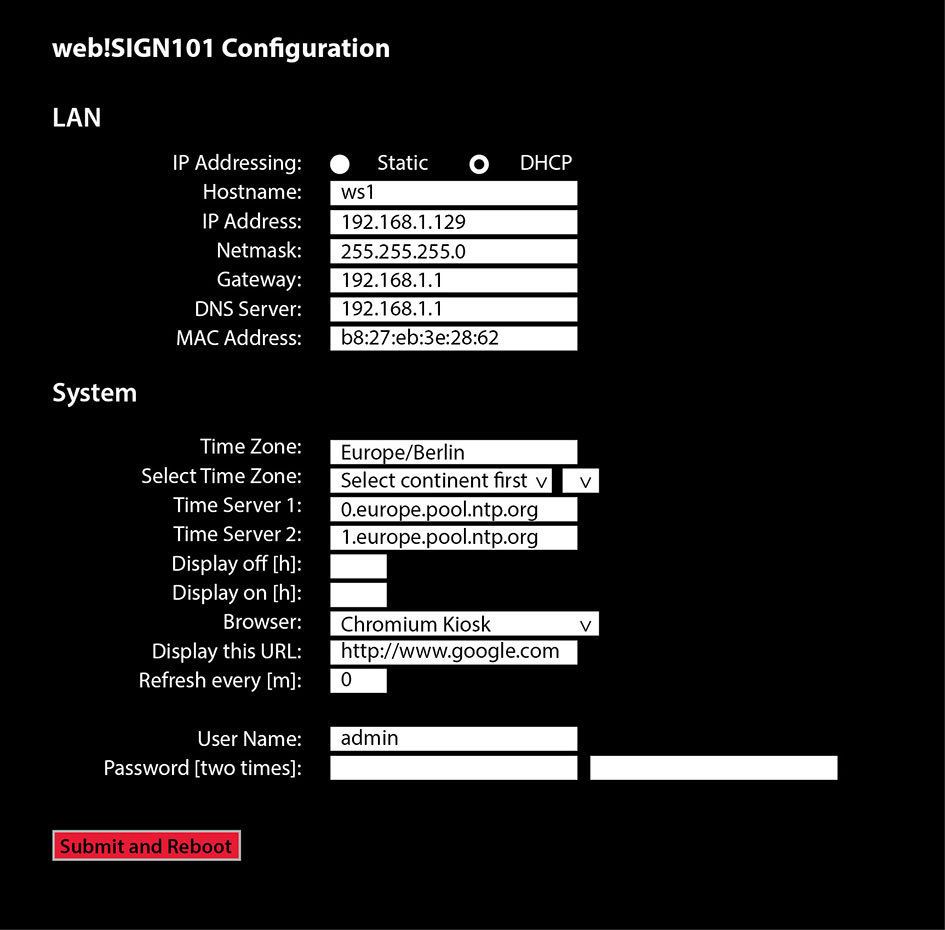

| Configuration | – | Via web browser in the local network |
| Timer Control | – | Automatic display shutdown configurable |
| On-screen Keyboard | – | Optional with touch version |
